Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Max. Input Voltage | 1100 VDC |
|---|---|
| Start-up DC Input Voltage (V) | 180 VDC |
| Rated Input Voltage | 630 VDC |
| MPPT Voltage Range | 160-1000 VDC |
| Max. String Input No. | 4 |
| MPPT No. | 2 |
| Max. Input Current | 202 A |
| Max. DC short-circuit current | 2×40 A |
| Rated AC Output Power | 15 kW, 17 kW, 20 kW, 23 kW, 25 kW |
| Max. AC Output Power (Apparent) | 15 kVA, 17 kVA, 20 kVA, 23 kVA, 25 kVA |
| Rated Output Voltage | 380 VAC / 400 VAC |
| Grid Connection Type | 3W/N/PE |
| Max. Output Current | 22.8 A, 25.8 A, 30.4 A, 34.9 A, 37.9 A |
| Rated Output Frequency | 50 / 60 Hz |
| THDi | < 1.5% |
| Power Factor | 0.8 leading … 0.8 lagging |
| Zero Export Solution | Support |
| Max. Efficiency | 98.5%, 98.6% |
| EU Efficiency | 98.0% |
| Protection Degree | IP66 |
| Cooling | Intelligent Air Cooling |
| Operating Temperature Range | -30°C to +60°C |
| Operating Humidity | 0-100% |
| Operating Altitude | 4000 m (> 3000 m derating) |
| DC switch | Yes |
| Anti-islanding Protection | Yes |
| DC Reverse Polarity Protection | Yes |
| DC Insulation Resistance Detection | Yes |
| Residual Current Monitoring Unit | Yes |
| AC Output Over Current Protection | Yes |
| AC Short Circuit Protection | Yes |
| Grid Monitoring | Yes |
| AFCI | Optional |
| DC/AC SPD | DC SPD Type II / AC SPD Type II |
| Display | LED Indicators & APP |
| Communication | WiFi (Optional) |
| Dimensions (W / H / D) | 435 x 520 x 194 mm |
| Weight | 17 kg, 19 kg |
| DC Inputs Type | MC4 |
| AC Outputs Type | Quick Connection Plug |
| Safety / EMC | IEC62109, IEC 61000-6-1/2/3/4 |
| Grid Code | IEC61727 & IEC62116 |

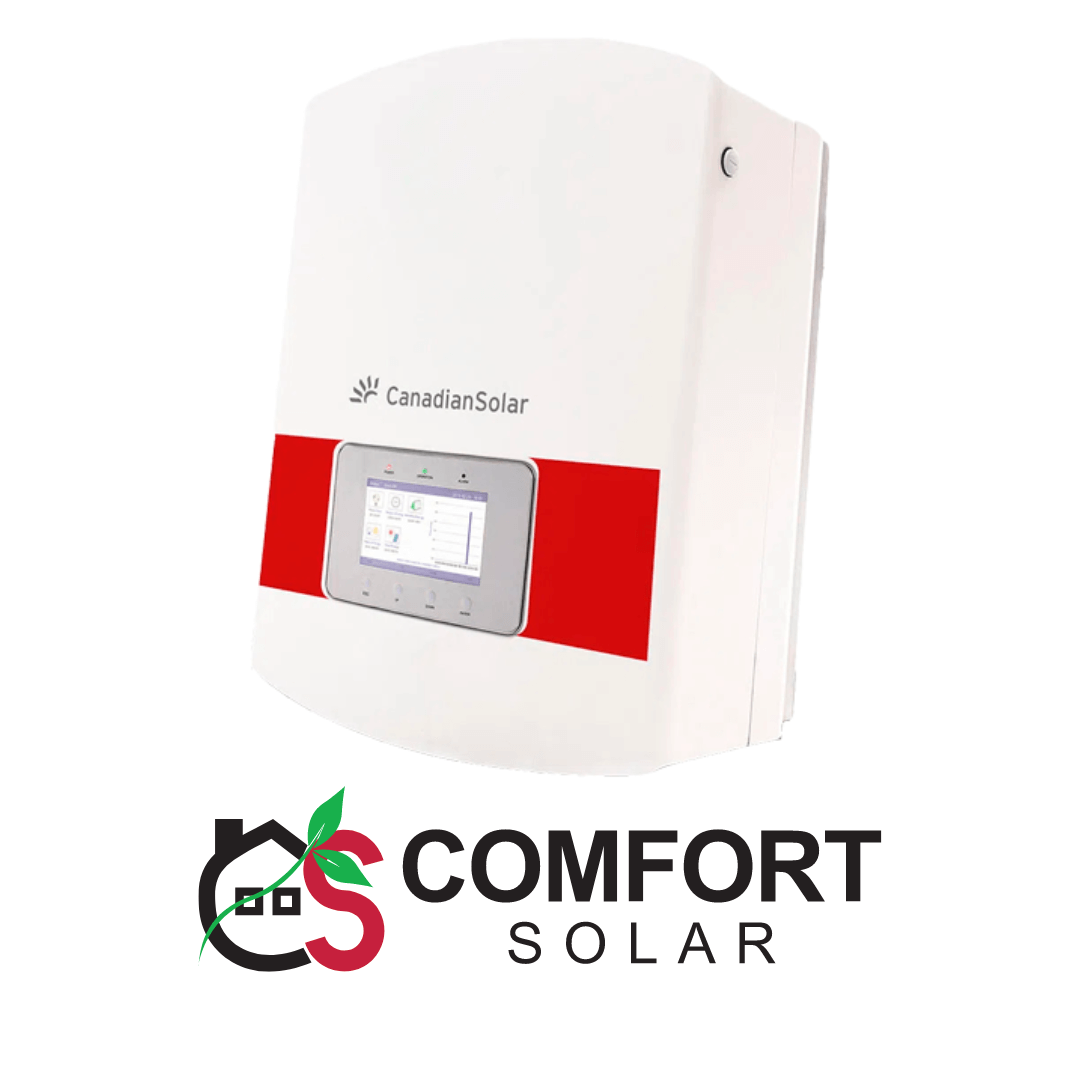

Discover the advanced features and reliability of Comfort Solar’s THREE PHASE STRING INVERTER 15-25 kW series, designed for industrial and commercial rooftop applications. These inverters from CSI Solar integrate cutting-edge technology to ensure maximum energy harvest and durability in diverse environments.
Key Features:
Efficiency Curve:
Why Choose Comfort Solar? Comfort Solar is dedicated to delivering high-quality solar products and solutions globally. Our THREE PHASE STRING INVERTER 15-25 kW series exemplifies reliability, efficiency, and adaptability, making it ideal for industrial and commercial rooftop applications. With IP66-rated protection, advanced cooling technology, and comprehensive safety features, Comfort Solar ensures optimal performance and peace of mind for your solar investment.
Contact Us: Explore our complete range of solar solutions at comfortsolar.pk. For inquiries or to place an order, contact us via WhatsApp at 03166225526. Trust Comfort Solar for innovative solar solutions that empower sustainability and efficiency.
Serving customers across multiple countries with reliable solar solutions.
Committed to exceptional service and support for every client.
Quick and efficient help whenever you need it.
Products and services guaranteed to meet top quality standards.
