Description

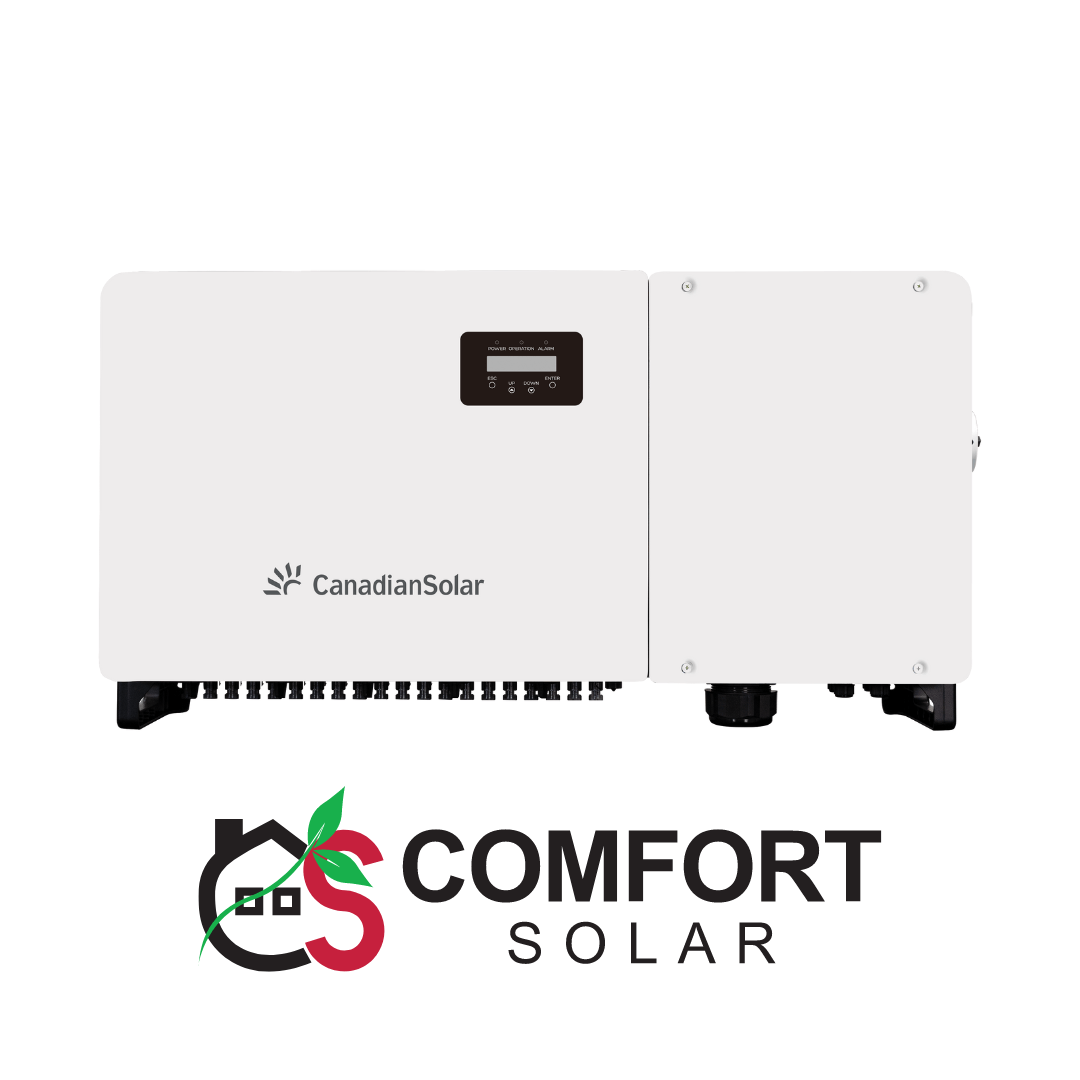

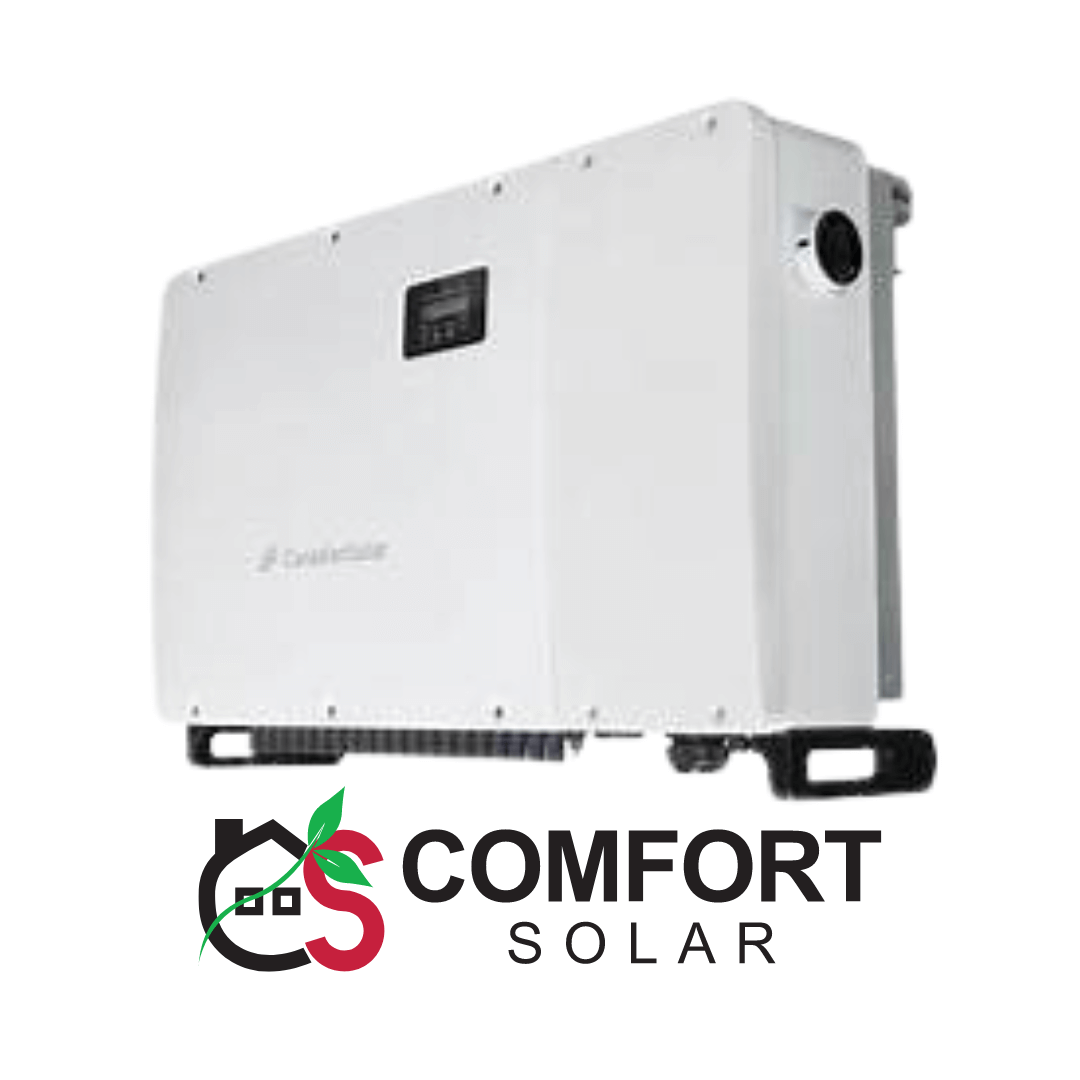

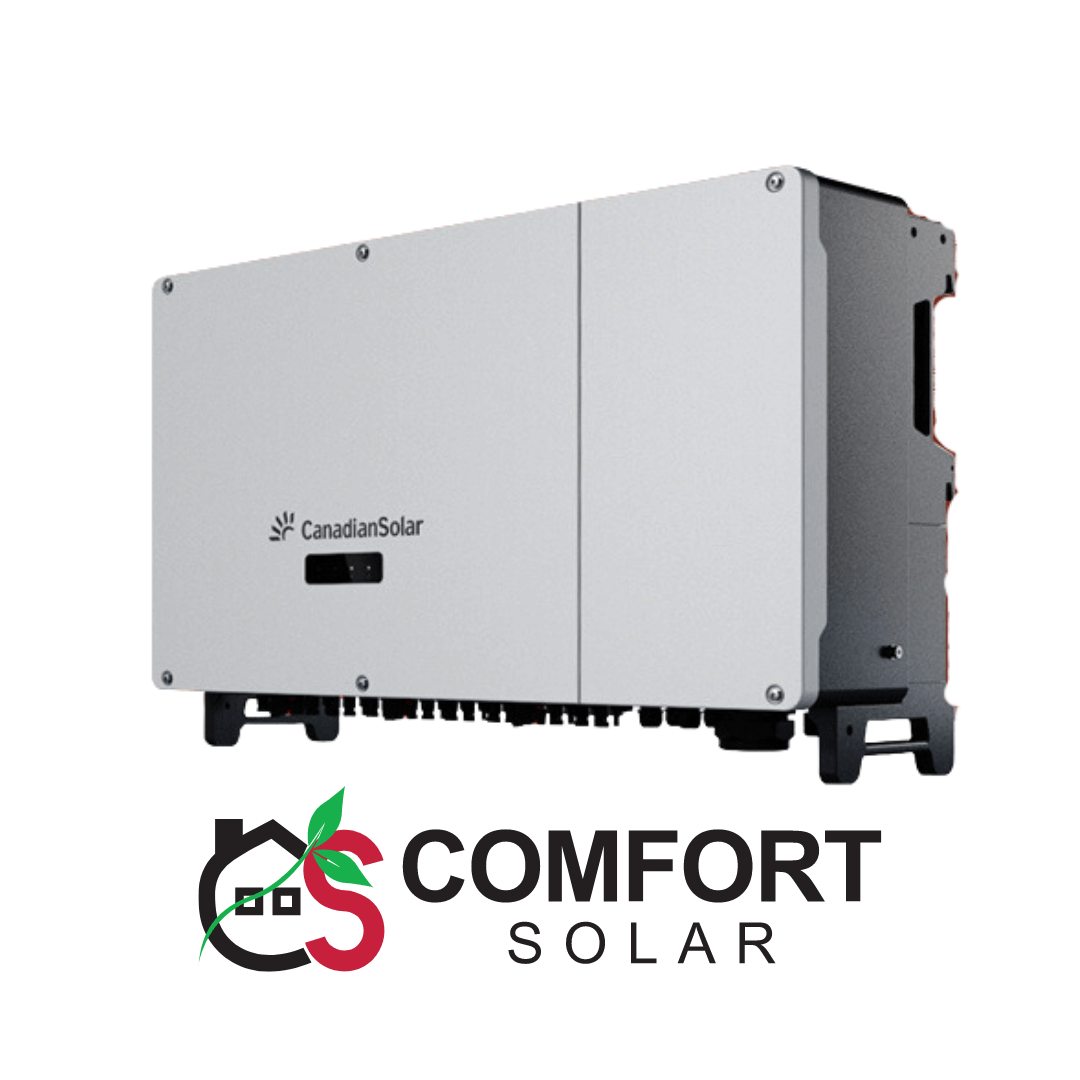

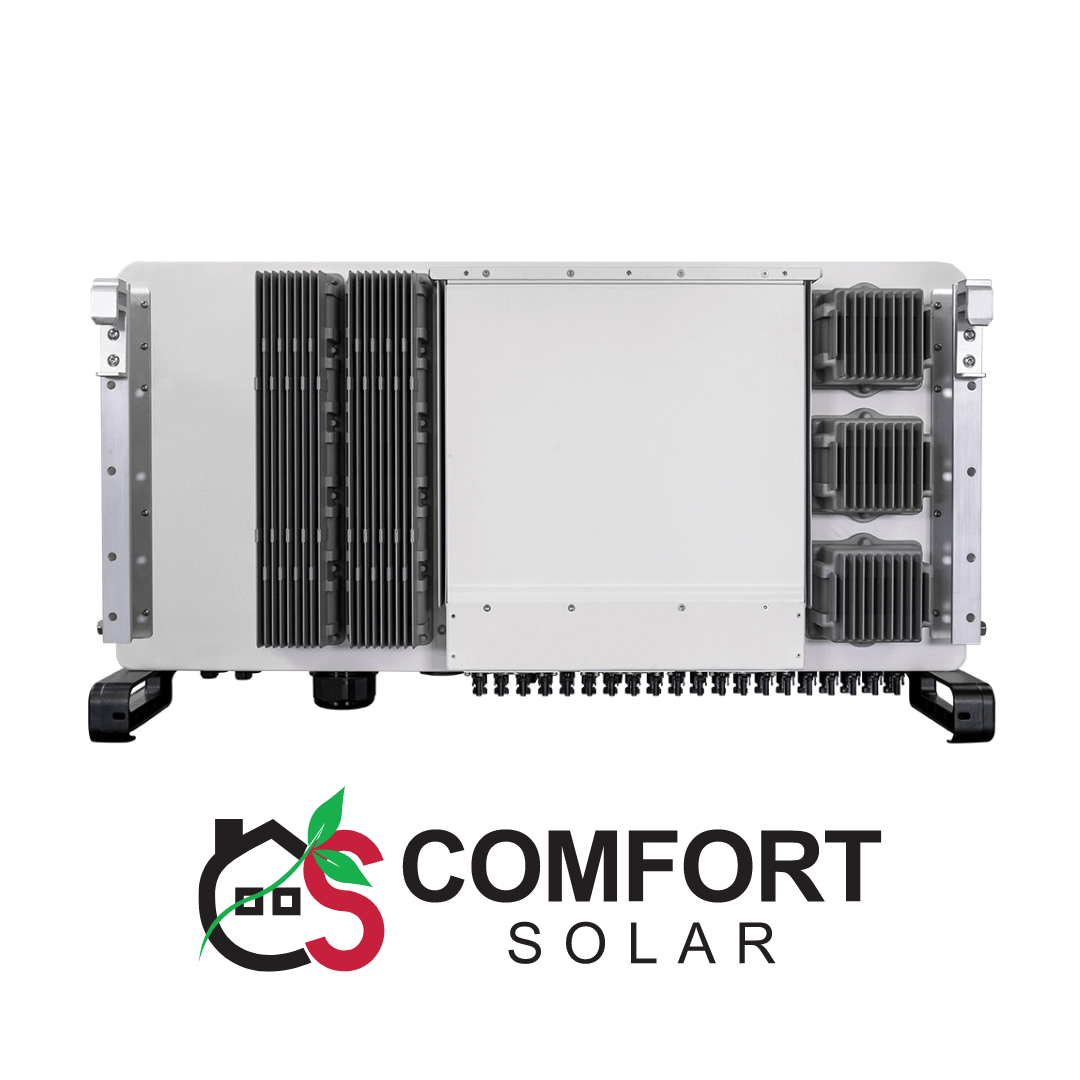

Are you looking for a high-performance solar inverter to power your industrial or commercial rooftop installations with reliable, eco-friendly energy? Look no further than the THREE PHASE STRING INVERTER 75-120KW available at Comfort Solar. This advanced inverter is designed to deliver exceptional performance, ensuring your solar power system operates at its peak efficiency.

Key Features:

• 20A Input for Each String: Perfectly matches with Hiku7 series modules for optimized performance.
• Integrated DC Switches: Simplifies maintenance and improves safety.
• Smart String Monitoring: Ensures efficient energy management.
• Integrated Anti-PID Function (Optional): Protects your system from potential-induced degradation.
• Supports Aluminum Cable: Offers flexibility in installation.
• AFCI: Provides arc-fault circuit interruption for enhanced safety.
• Intelligent Fan Cooling: Maintains optimal operating temperatures.
• SPD Type II for DC and AC: Protects against surges.
• Leakage Current Suppression Technology: Reduces unwanted current flow.
• DC Reverse Polarity Protection: Prevents damage from incorrect connections.

High Reliability:

• IP66 Protection: Suitable for harsh environments.
• Utility Interactive Controls: Features active power derating, reactive power control, and over frequency derating for grid stability.

Broad Adaptability:

CSI Solar’s grid-tied, transformer-less string inverters accelerate the use of three-phase string architecture for industrial and commercial rooftop applications. These modular design building blocks provide a wide MPPT voltage range (200-1000VDC) and multiple MPPTs (6 or 9) for maximum energy harvest.

Efficiency Curve:

• Model: CSI-120KW
• Efficiency: Up to 98.5%
• Maximum DC Input Voltage: 1100VDC
• Rated Input Voltage: 600VDC
• Efficiency Curve: Ensures high performance across a wide range of operating conditions.

System Technical Data:

• DC Input Voltage Range: 200-1000VDC
• Maximum Input Current: 6 x 40A / 9 x 32A
• Number of MPP Trackers: 6 or 9
• AC Output Power: Up to 120 kVA
• Grid Connection Type: 3Φ / N / PE
• Operating Ambient Temperature Range: -30°C to +60°C
• Degree of Protection: IP66

Safety and Protection:

• Anti-Islanding Protection
• DC Insulation Resistance Detection
• Residual Current Monitoring
• AC Output Over Current Protection
• AC Short Circuit Protection
• Grid Monitoring
• Anti-PID Module (optional)
• Smart IV Curve Diagnosis
• DC / AC SPD Type II
• AFCI

Why Choose Comfort Solar?

At Comfort Solar, we are dedicated to providing high-quality solar solutions tailored to your needs. Our THREE PHASE STRING INVERTER 75-120KW is designed to offer maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.

Call to Action:

Ready to upgrade your energy system with our high-performance three-phase string inverter? For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your industrial and commercial installations with the best solar technology available!
