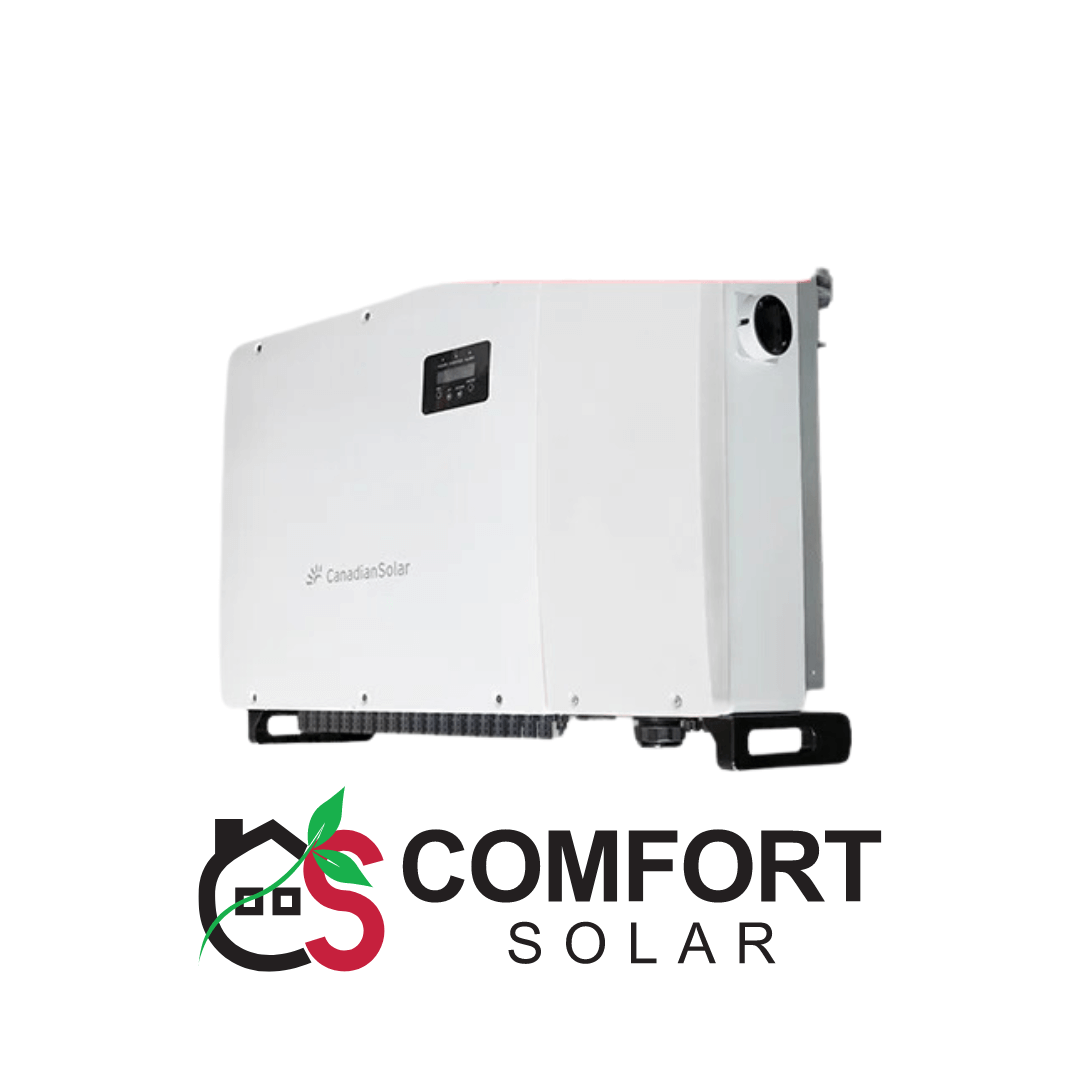

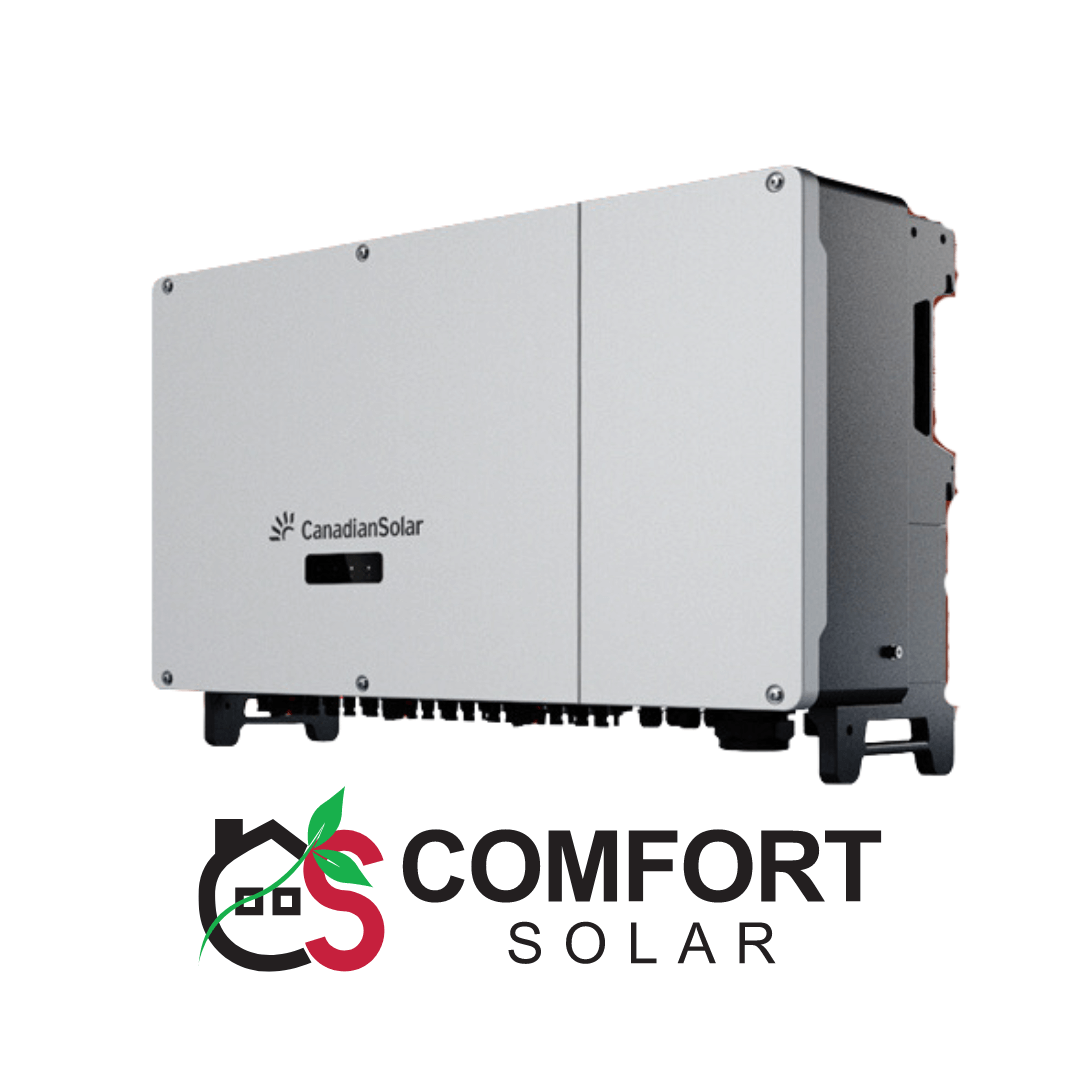

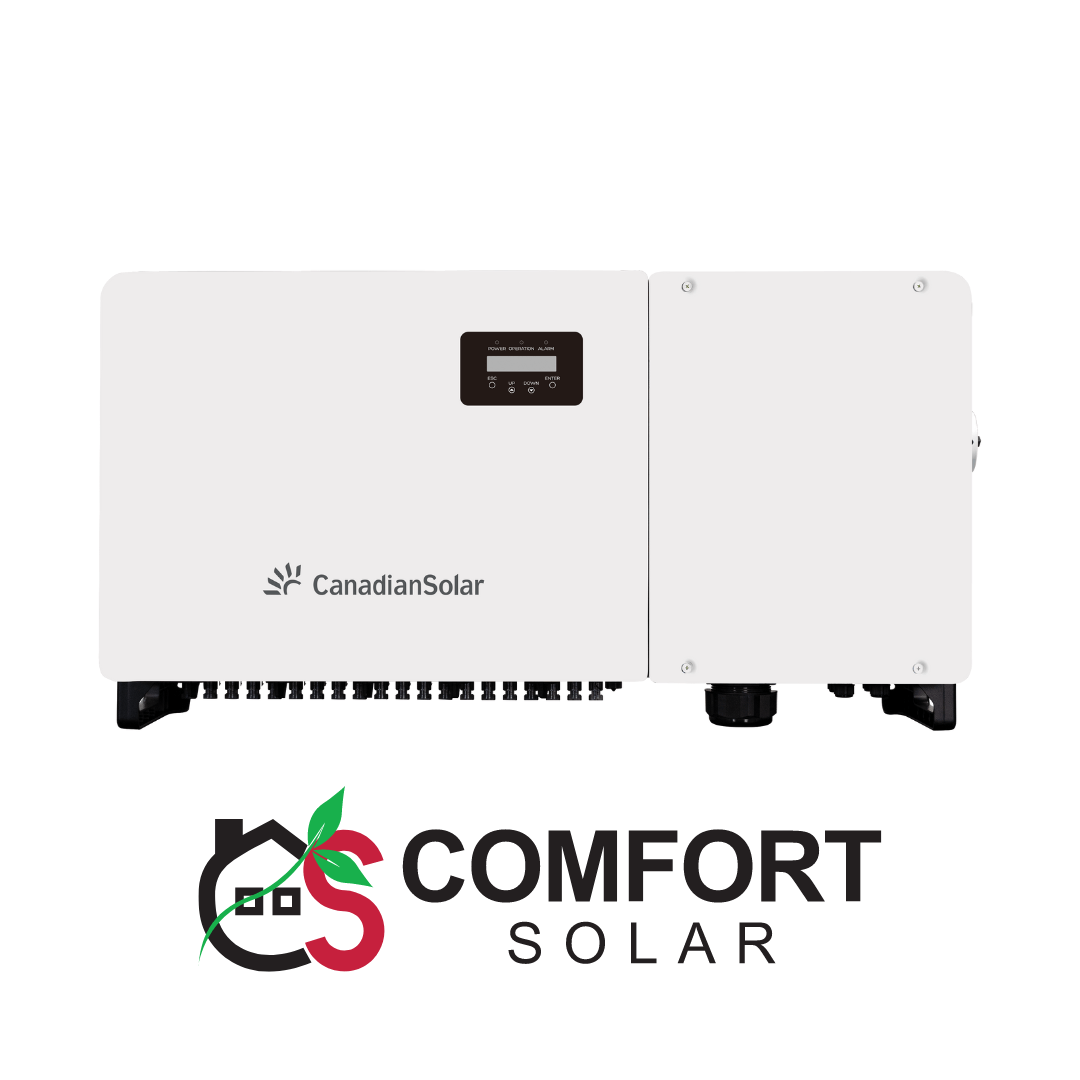

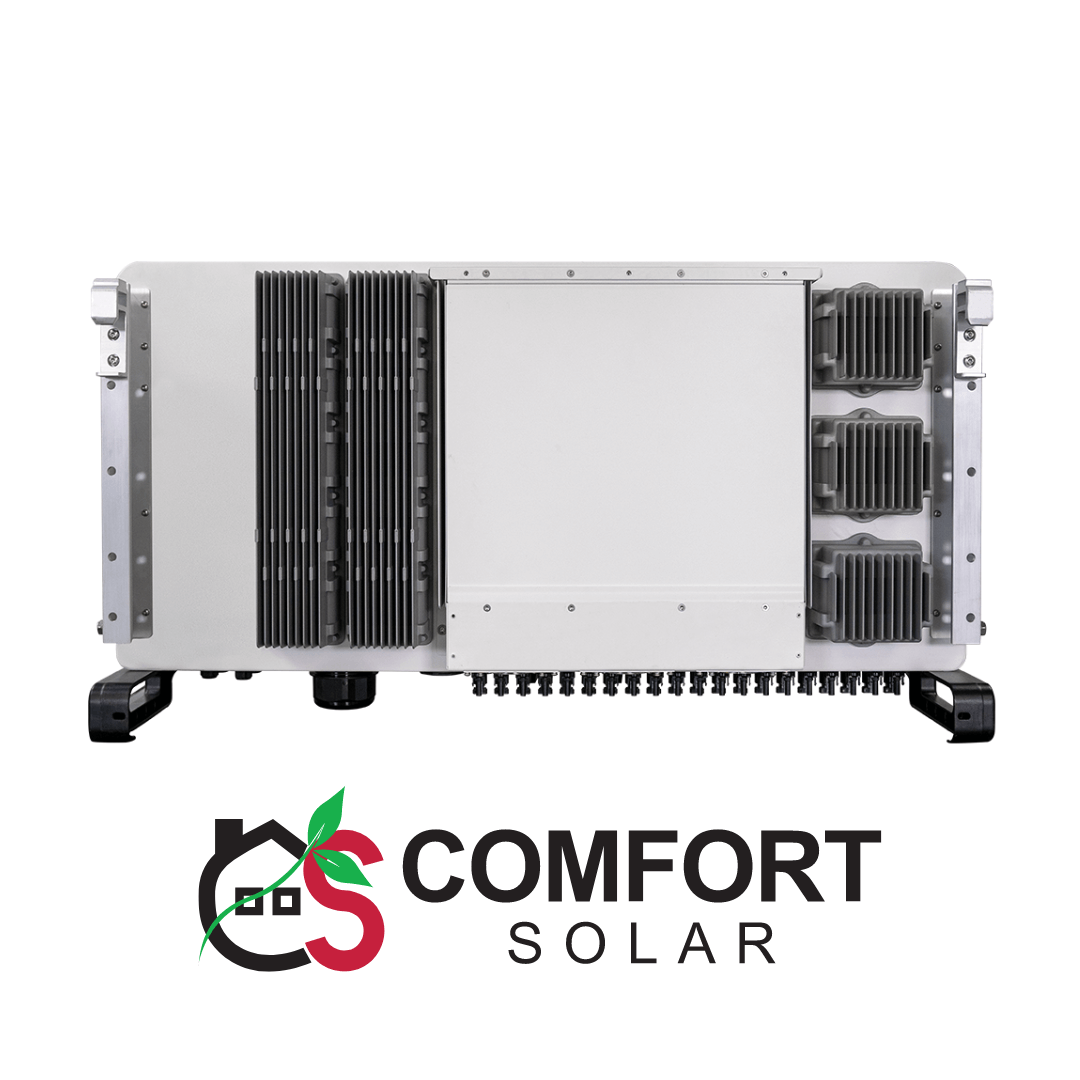

The Canadian Solar CSI 110KW Three Phase String Inverter is engineered to deliver outstanding performance and reliability for commercial rooftop and small ground-mount applications. This inverter is a part of our cutting-edge line of solar solutions at Comfort Solar, where we prioritize efficiency, reliability, and customer satisfaction.
Key Features:
Maximum Efficiency: Achieves up to 98.7%, with a maximum EU efficiency of 98.3%.
Multiple MPPTs: 10 MPPTs to ensure higher system efficiency and maximum energy harvest.
High Input Capacity: 13A input for each PV string, accommodating a wide range of modules.
Integrated DC Switches: Simplifies maintenance and enhances safety.
Smart Monitoring: String monitoring and IV curve diagnosis for optimal performance tracking.
Advanced Cooling: Intelligent redundant fan-cooling system ensures efficient temperature management.
Surge Protection: SPD type II on both DC and AC sides to protect against power surges.
Leakage Current Suppression: Technology to reduce leakage currents for enhanced system safety.
Fuse-Free Design: Reduces the risk of failure and simplifies maintenance.
DC Reverse Polarity Protection: Prevents damage from incorrect connections.
High Reliability:
IP66 Protection: Rated for outdoor applications, ensuring durability in harsh environments.
Utility Interactive Controls: Includes active power derating, reactive power control, and over frequency derating.
Wide MPPT Range: Allows flexible string sizing from 180V to 1000V DC.
High Switching Frequency: Ultra-fast MPPT for maximum efficiency across a wide load range.
Broad Adaptability:
Canadian Solar’s grid-tied, transformer-less string inverters facilitate the use of three-phase string architecture, providing a cost-effective alternative to central inverters. These inverters are modular, enabling significant BoS cost savings and high yield.
Efficiency Curve:
Model: CSI-110K-T400GL02-E
Efficiency: Up to 98.7%
Operating Range: 180-1000 V DC
MPPT Efficiency: Ensures maximum energy harvest over a wide range of operating conditions.
System/Technical Data:
Max. PV Power: 140 kW
Max. DC Input Voltage: 1100 V DC
Start-up DC Input Voltage/Power: 195 V DC
Number of MPP Trackers: 10
Max. Input Current: 260 A (26 A per MPPT)
Max. Short Circuit Current: 400 A (40 A per MPPT)
Number of DC Inputs: 20 (2 per MPPT)
DC Switch: Integrated
AC Output:
Rated AC Output Power: 110 kW
Max. AC Output Power: 121 kW
Rated Output Voltage: 220 / 380 V AC, 230 / 380 V AC
Grid Connection Type: 3W / N / PE
Rated Grid Output Current: 167.1 A
Max Output Current: 183.8 A
Rated Output Frequency: 50 / 60 Hz
Output Frequency Range: 47 – 52 / 57 – 62 Hz
Power Factor: > 0.99 (0.8 leading to 0.8 lagging)
Current THD: < 3%
DC Injection Current: < 0.5% of Rated Grid Output Current
Environment:
Protection Degree: IP66
Cooling: Intelligent Redundant Cooling
Operating Temperature Range: -25 °C to +60 °C
Storage Temperature Range: -40 °C to +70 °C
Operating Humidity: 0 – 100% condensing
Operating Altitude: Up to 4000 m
Audible Noise: < 65 dBA @ 1 m
Display and Communication:
Display: LCD, 2 × 20 Z
Communication: RS485 / WiFi (Optional)
Mechanical Data:
Dimensions (W / H / D): 1065 x 567 x 344.5 mm
Weight: 84 kg
Installation Angle: 0~15 Degrees from Vertical
DC Inputs: MC4
Safety Standards: IEC 62109-1/2, IEC 61000-6-2/4
Grid Standards: IEC 62116, IEC 61727, EN 50549-1
Why Choose Comfort Solar?
At Comfort Solar, we are committed to delivering top-tier solar solutions tailored to your needs. Our Canadian CSI 110KW Three Phase String Inverter is designed for maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.
Call to Action:
Ready to enhance your energy system with our high-performance three-phase string inverter? For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Empower your commercial and industrial installations with the best solar technology available!
