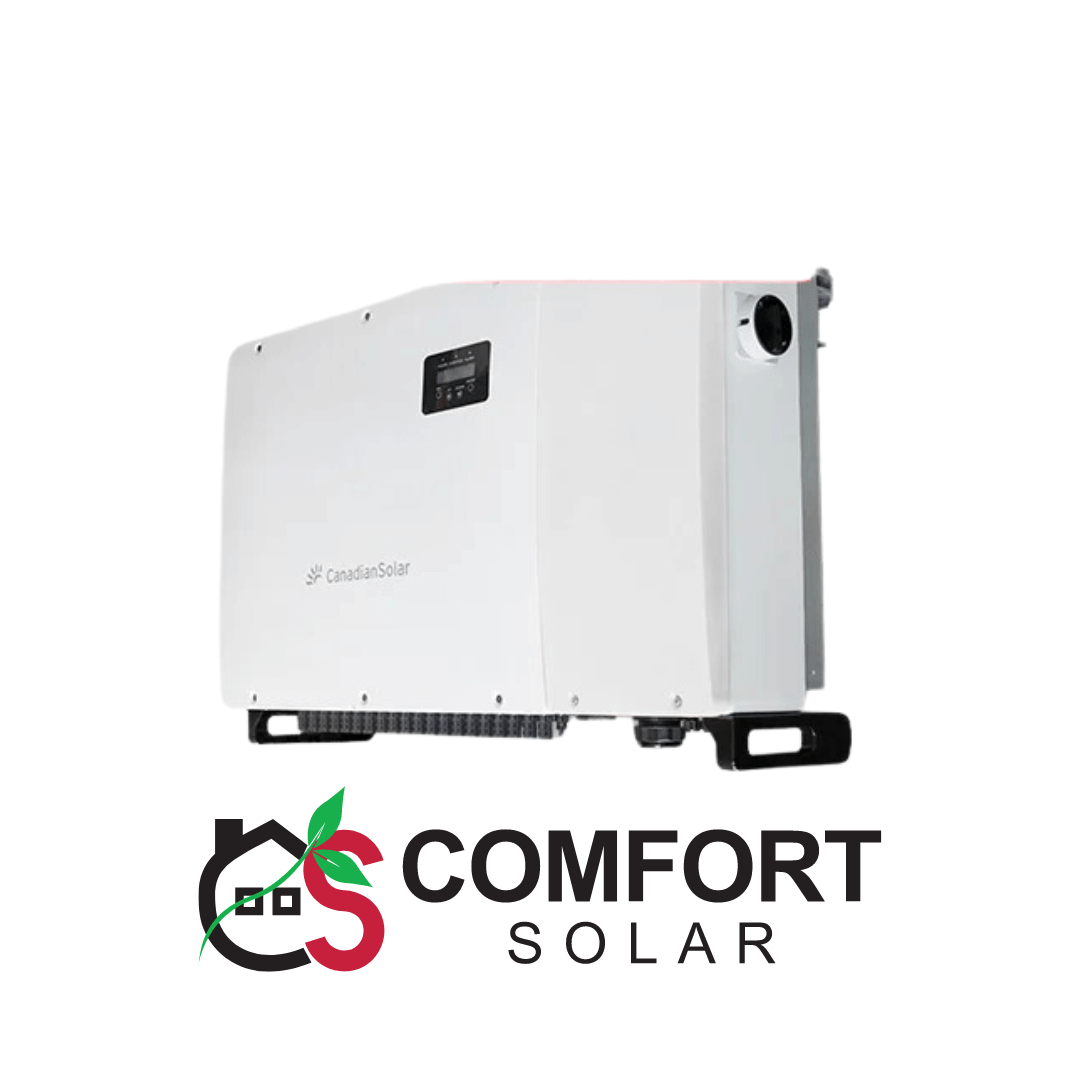

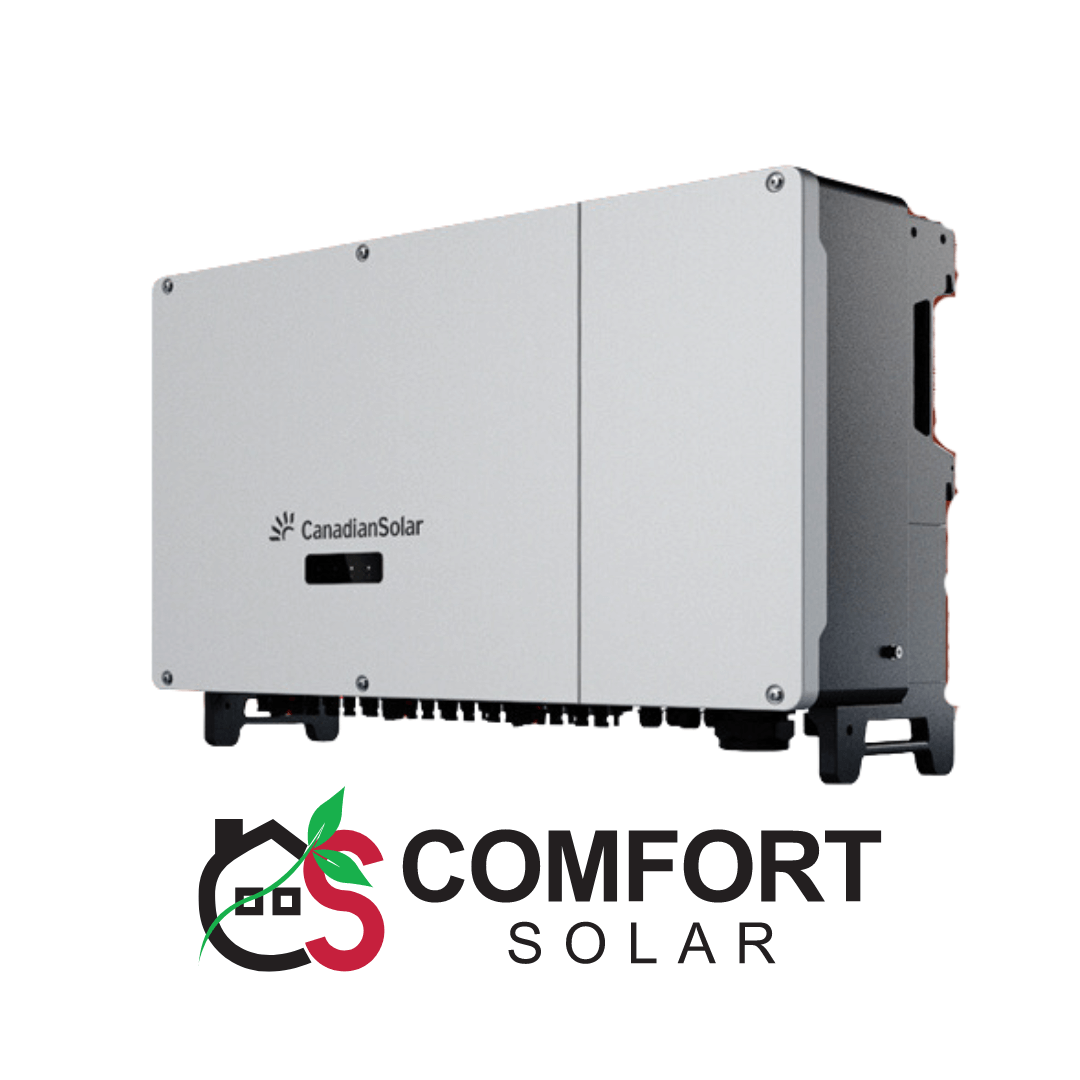

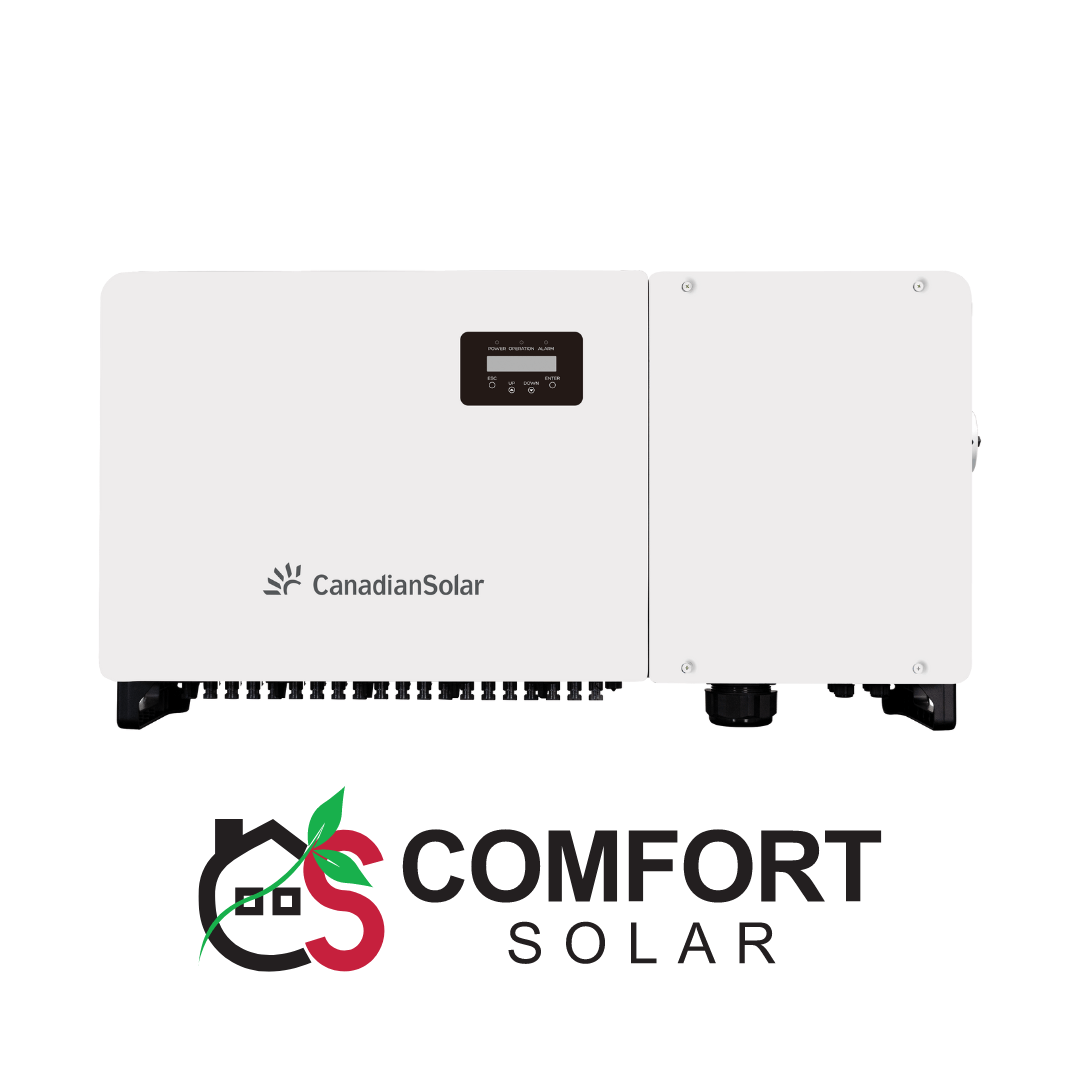

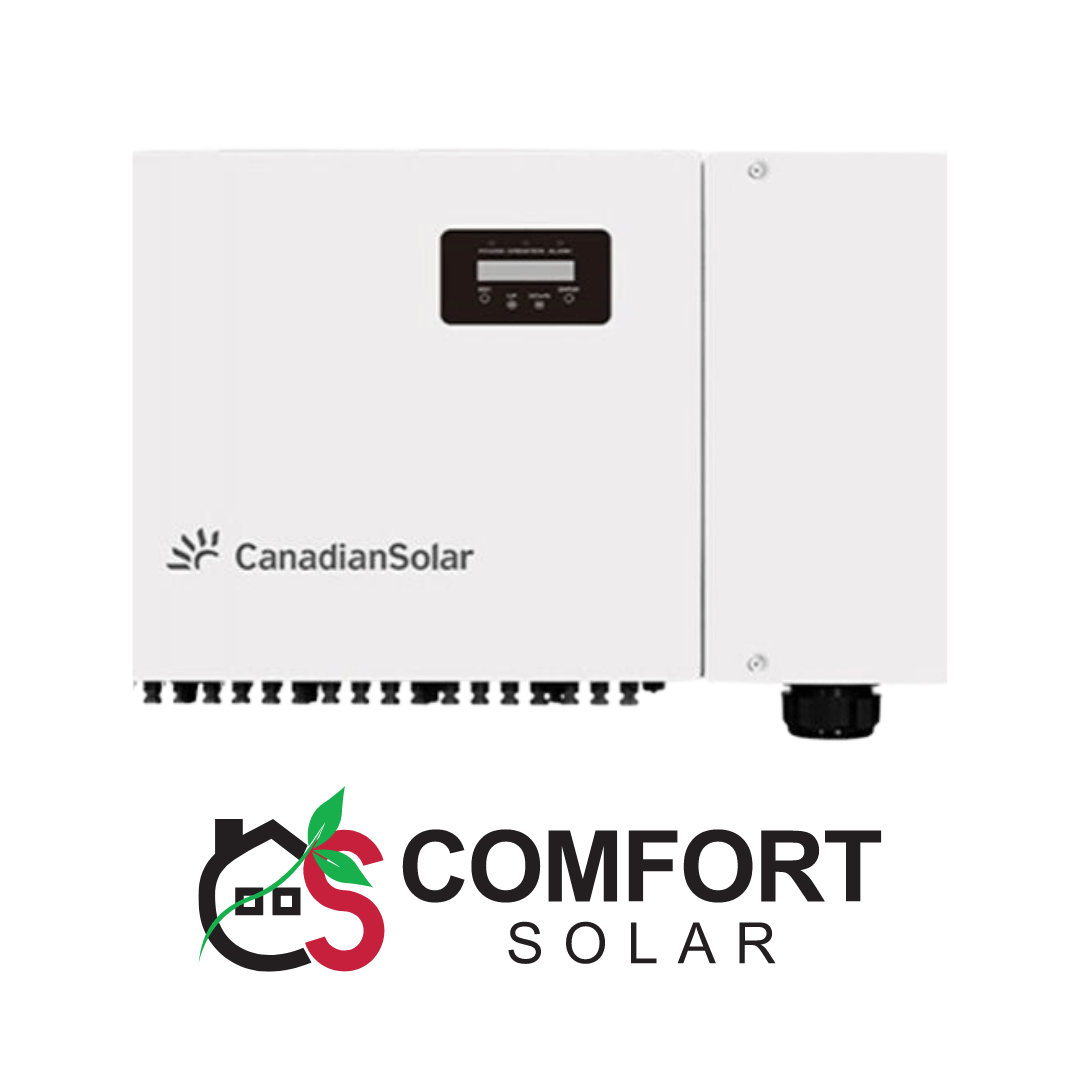

Discover superior efficiency and reliability with the HYBRID SOLAR INVERTER – CSI GRID-TIED PV INVERTER from Comfort Solar. Engineered for seamless integration into residential and commercial solar power systems, this state-of-the-art inverter ensures optimal performance and maximum energy yield.
Key Features:
Detailed Features:
Why Choose Comfort Solar? At Comfort Solar, we prioritize sustainability and energy efficiency. Our products, including the HYBRID SOLAR INVERTER – CSI GRID-TIED PV INVERTER, are designed to deliver reliable performance and significant energy savings over the long term.
Call to Action: Ready to enhance your solar energy system with our high-performance hybrid solar inverters? Visit comfortsolar.pk today to explore more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—transform your energy usage with Comfort Solar’s advanced solar solutions!
| Model Name | CSI-IIOK-T4001A-E |
|---|---|
| Max. Input Voltage | 1100 VDC |
| Start-up DC Input Voltage (V) | 195 VDC |
| Rated Input Voltage | 600 VDC |
| MPPT Voltage Range | 200 – 1000 VDC |
| Max. String Input No. | 12 |
| MPPT No. | 6 |
| Max. Input Current | 6×40 A |
| Max. DC short-circuit current | 6×50 A |
| Rated AC Output Power | 100 kW |
| Max. AC Output Power (Apparent) | 100 kVA |
| Rated Output Voltage | 380 / 400 VAC |
| Grid Connection Type | 3L/N/PE |
| Max. Output Current | 152 A |
| Rated Output Frequency | 50 / 60 Hz |
| Power Factor | 0.8 leading 0.8 lagging |
| Zero Export Solution | Supported |
| Max. Efficiency | 98.5% |
| EU Efficiency | 98.1% |
| Protection Degree | IP66 |
| Cooling | Intelligent Fan Cooling |
| Operating Humidity | 0 – 100% Non-condensing |
| Operating Altitude | 4000 m (3000 m derating) |
| DC switch | Yes |
| Anti-lslanding Protection | Yes |
| DC Reverse Polarity Protection | Yes |
| DC Insulation Resistance Detection | Yes |
| Residual Current Monitoring Unit | Yes |
| String Monitoring | Yes |
| AC Output Over Current Protection | Yes |
| Grid Monitoring | Yes |
| Anti-PID Module | Optional |
| Overvoltage Class | 11 (DC), 111 (AC) |
| DC/AC SPD | DC SPD Type 11 / AC SPD Type 11 (Type 1 Optional) |
| Display | LED & APP (via Bluetooth) |
| Communication | RS485 / WiFi (Optional) |
| Dimensions (W / H / D) | 1050 x 687 x 355 mm |
| Weight | 90 kg |
| AC Short Circuit Protection | Yes |
| DC Inputs Type | MC4 |
| AC Outputs Type | OT Terminals (Support the AC cables Max. 240mm2) |
| Safety / EMC | IEC62109, IEC 61000-6-2/3 |
| Operating Temperature Range | -30°C to +60°C |
| Grid Code | IEC61727 & IEC62116 |
