₨ 92,000
⚡ 3.5kVA / 3.5kW high-efficiency inverter for residential and commercial use
🔌 Pure sine wave output – safe for sensitive electronics
⚙️ Built-in MPPT solar charger with up to 100A charge current
🔋 Compatible with 24VDC lithium and lead-acid batteries
🌞 Handles up to 4200W of solar PV input
🔄 Fast transfer time: 10ms (computers) / 20ms (appliances)
🌐 RS232 & RS485 communication ports for monitoring
🚀 Peak efficiency: 96% (solar to inverter), 93% (battery to inverter)
🌧️ Durable design: operates from -10°C to 50°C
🛒 Available now at ComfortSolar.pk
📞 Contact via WhatsApp: +92 316 6225526
📦 Nationwide delivery – Pakistan’s most trusted solar store
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Model | NEON PV4200 |
|---|---|
| Capacity | 3.5kVA / 3.5kW |
| Nominal Voltage | 220/230VAC ±5% |
| Acceptable Voltage Range | 170–280VAC (PC) / 90–280VAC (Home Appliances) |
| Frequency | 50/60Hz |
| Surge Power | 7000VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (PC) / 20ms (Home Appliances) |
| Peak Efficiency (PV to INV) | 96% |
| Peak Efficiency (Battery to INV) | 93% |
| Overload Protection | 5s ≥150% load; 10s @ 110–150% load |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Charging Method | CC / CV |
| Lithium Battery Activation | Yes |
| Lithium Battery Communication | Yes (RS485) |
| Solar Charger Type | MPPT |
| Max. PV Array Power | 4200W |
| Max. PV Open Circuit Voltage | 500VDC |
| PV MPPT Voltage Range | 60–500VDC |
| Max. Solar Input Current | 18A |
| Max. Solar Charge Current | 100A |
| Max. AC Charge Current | 80A |
| Max. Charge Current (PV + AC) | 100A |
| Inverter Dimensions (mm) | 358 × 295 × 100 |
| Package Dimensions (mm) | 465 × 380 × 175 |
| Net Weight | 7 kg |
| Communication Interface | RS232 + RS485 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 50°C |
| Humidity | 5% to 95% RH (Non-condensing) |

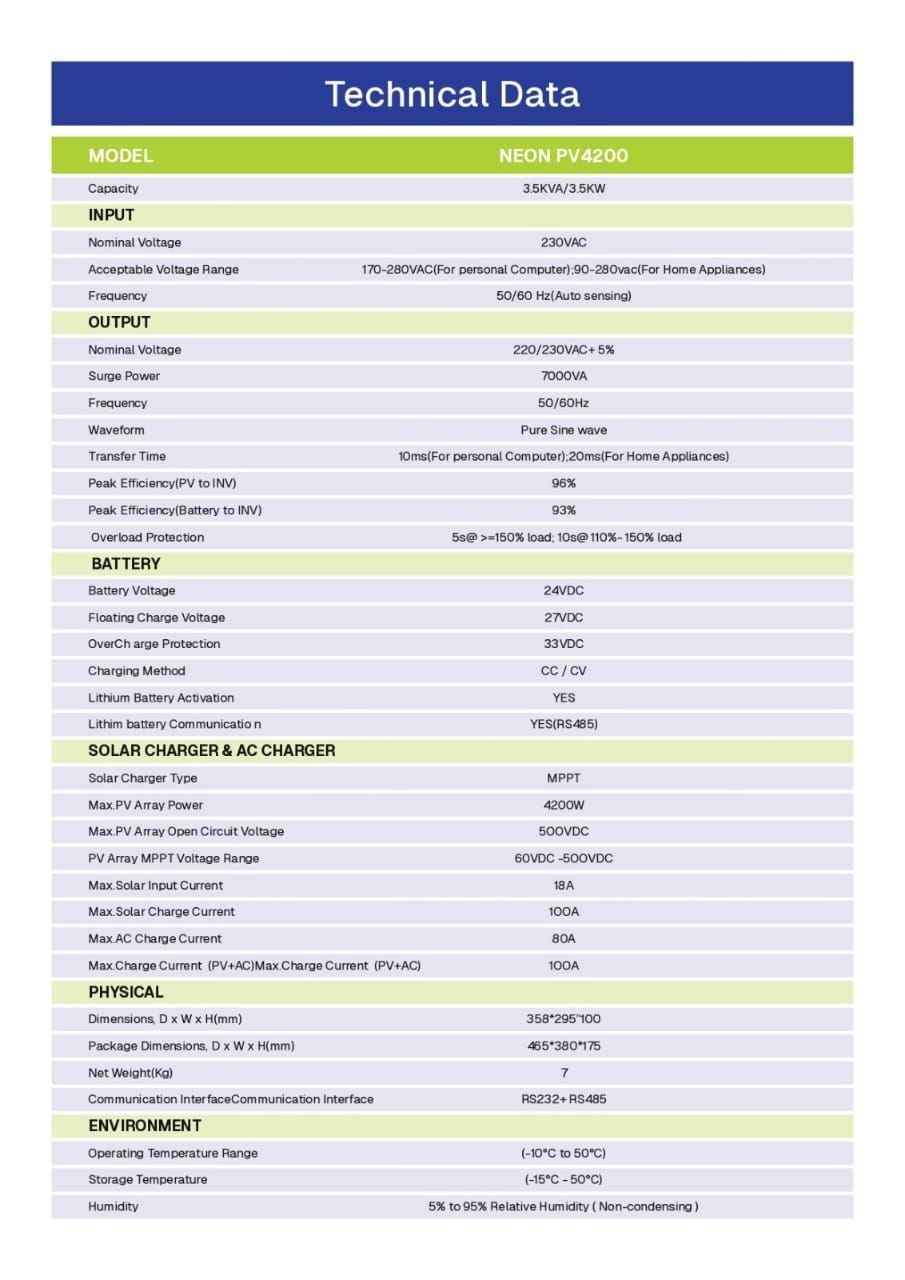

| Suntrix NEON PV4200 Inverter – Technical Specifications | |
|---|---|
| Model | NEON PV4200 |
| Capacity | 3.5kVA / 3.5kW |
| Input | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170–280VAC (PC) / 90–280VAC (Home Appliances) |
| Frequency | 50/60Hz (Auto sensing) |
| Output | |
| Nominal Voltage | 220/230VAC ±5% |
| Surge Power | 7000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (PC) / 20ms (Home Appliances) |
| Peak Efficiency (PV to INV) | 96% |
| Peak Efficiency (Battery to INV) | 93% |
| Overload Protection | 5s ≥150% load; 10s @ 110–150% load |
| Battery | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Charging Method | CC / CV |
| Lithium Battery Activation | Yes |
| Lithium Battery Communication | Yes (RS485) |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Max. PV Array Power | 4200W |
| Max. PV Open Circuit Voltage | 500VDC |
| PV MPPT Voltage Range | 60–500VDC |
| Max. Solar Input Current | 18A |
| Max. Solar Charge Current | 100A |
| Max. AC Charge Current | 80A |
| Max. Charge Current (PV + AC) | 100A |
| Physical | |
| Inverter Dimensions (mm) | 358 × 295 × 100 |
| Package Dimensions (mm) | 465 × 380 × 175 |
| Net Weight | 7 kg |
| Communication Interface | RS232 + RS485 |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 50°C |
| Humidity | 5% to 95% RH (Non-condensing) |

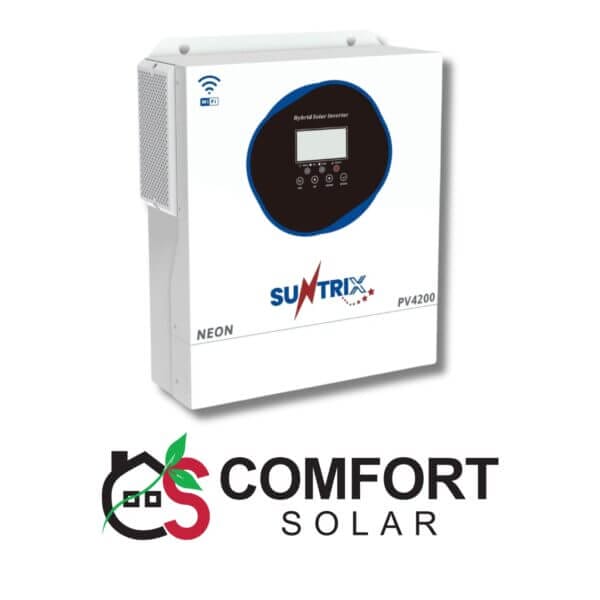

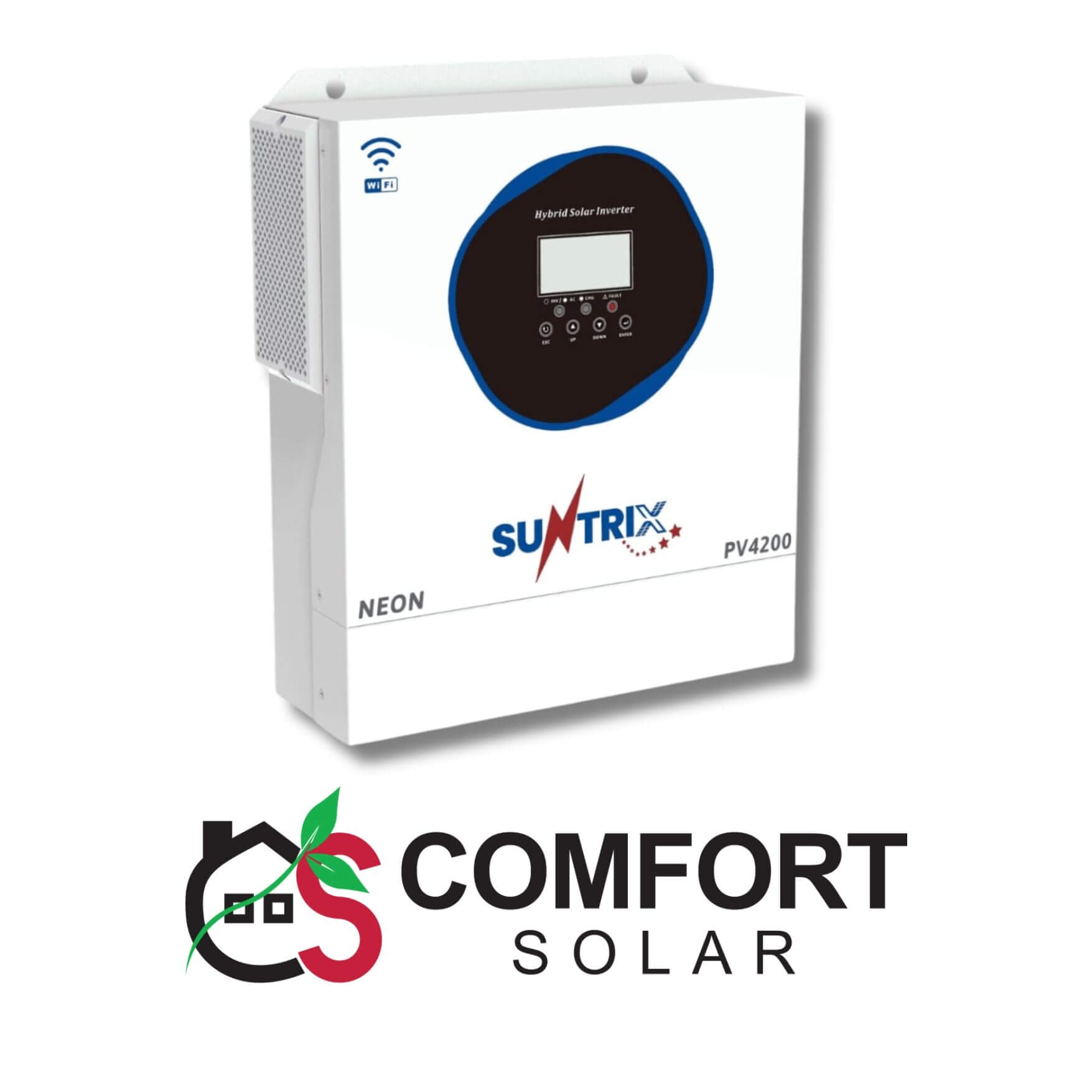

The Suntrix NEON PV4200 is a premium 3.5kVA/3.5kW off-grid solar inverter, engineered to provide high-performance power management for homes and small businesses across Pakistan. With a built-in MPPT charge controller and pure sine wave output, it ensures your appliances run safely and efficiently.
Designed to operate in Pakistan’s harsh conditions, this inverter offers up to 7000VA surge power, 96% peak efficiency, and fast transfer time to protect your electronics. Its wide input voltage range (170–280VAC) and dual-mode battery compatibility (lithium and lead-acid, 24VDC) make it a versatile solution for solar backup and hybrid systems.
Ideal for use with solar PV arrays up to 4200W and batteries with smart BMS (RS485), it supports seamless integration with your renewable energy setup.
MPPT solar charger with 60–500VDC input range
Overload and overcharge protection
Multiple communication interfaces (RS232 & RS485)
Compact and lightweight design (only 7kg)
IP-protected internal architecture for long-lasting performance
ComfortSolar.pk is your #1 destination for original Suntrix solar inverters and energy storage products. We offer free delivery across Pakistan, expert technical support, and hassle-free ordering through WhatsApp: +92 316 6225526.
✅ Product authenticity guaranteed
✅ Partial deposit required for dispatch
✅ Serving Lahore, Karachi, Islamabad, Multan, and more
✅ Thousands of satisfied customers
