₨ 23,000 – ₨ 26,000
⚡ 60A MPPT Charging Capacity – Optimized for medium-sized solar systems with high efficiency.
🔋 Supports 12V & 24V Battery Systems (Auto Select) – Seamless auto-detection for simplified setup.
☀️ Wide PV Input Range: 15V to 145V – Accepts a broad solar voltage range, ideal for flexible panel configurations.
🌞 Maximum Solar Input Power – Up to 1000W (12V) or 2000W (24V).
⚙️ Three-Stage Smart Charging – Bulk, Absorption, and Float modes to maximize battery life and safety.
🔄 Built-in 30A Hybrid Relay – Automatically manages external loads or generators for hybrid systems.
🖥️ Graphic Display with 4-Button Navigation – Easy access to system stats and settings.
💡 Low Power Consumption – Max 12W, ideal for energy-conscious systems.
🛠️ Wall Mountable and Compact Design – 285 × 180 × 100 mm, under 5 kg.
🌡️ Wide Temperature Range – Operates in -20°C to +70°C (up to 75°C de-rated), suitable for harsh climates.
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Nominal Battery Voltage | mX6215: 12V/24V (Auto) mX6225: 12V/24V/48V (Auto) |
|---|---|
| PV Array Voltage Range | mX6215: 15VDC ~ 145VDC mX6225: 15VDC ~ 245VDC |
| Nominal Charging Current | mX6215: 60A mX6225: 80A / 100A |
| Maximum PV Array Power | 12V: 1000W 24V: 2000W 48V: 3000W |
| Array Short-Circuit Current | 30A DC (Max) |
| Maximum Wire Size | 10 mm² |
| Total Power Consumption | 12W Max (At Full Power) |
| Charger Regulation Method | Three-stage (Bulk, Absorption, Float) |
| Display | Graphic Display |
| Navigation | 4 Buttons |
| Hybrid Function | Built-in Relay (30A Rated) |
| Dimensions (H × W × D) | 285 × 180 × 100 mm |
| Weight (Shipping) | <5 kg |
| Shipping Dimensions (H × W × D) | 290 × 185 × 105 mm |
| Mounting | Wall Mount |
| Operating Temperature Range | -20°C to +70°C (up to 75°C de-rated) |
| Storage Temperature | -40°C to +125°C |
| Model | mX6225 |

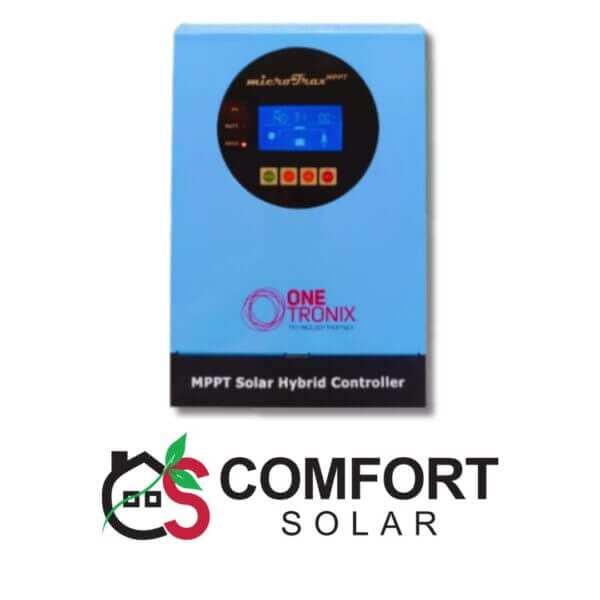

The OneTronix mX6215 and mX6225 MPPT Solar Charge Controllers are high-efficiency solar regulators engineered for modern off-grid and hybrid solar systems. Supporting 12V, 24V, and 48V battery banks, these controllers deliver superior performance with up to 100A charging capacity and advanced MPPT tracking technology for optimal energy harvest. Designed with robust protection features, intelligent three-stage charging, and built-in hybrid relay support, the OneTronix series ensures reliable, safe, and flexible power management for residential, commercial, and industrial applications. Ideal for users seeking durability, versatility, and energy optimization.
