| Rated charge current | 10A/12V, 10A, 15A, 20A, 10A, 15A, 20A |
|---|---|
| Nominal system voltage | 12/24VDC, 12VDC |
| Max. output power | 100W, 100W, 130W, 200W, 100W, 130W, 200W |
| Battery input voltage range | 8.5～16VDC, 8.5～32VDC |
| Rated charge power | 130W/12V, 130W/12V; 260W/24V, 200W/12V; 400W/24V, 260W/12V; 520W/24V |
| Max. PV open circuit voltage | 100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature), 50V (Min. Temp.) 45V(25℃), 60V(at minimum operating environment temperature) 46V(at 25℃ environment temperature) |
| MPP voltage range | ( Battery voltage+2V)～36V, ( Battery voltage+2V)～72V |
| Max. Output Current | 3.3A, 4.5A, 6.6A |
| Output Voltage Range | ( Max. battery voltage+2V)～46V, ( Max. battery voltage+2V)～58V, ( Max. battery voltage+2V)～80V |
| Load open circuit voltage | 46V, 58V, 80V |
| Load over-voltage protection | 100V, 50V, 63V |
| Maximum output efficiency | 96% |
| Output current control accuracy | ≤2% |
| Battery Type | Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery:LiFePO4/Li-NiCoMn/User |
| Lead-acid | Equalize Charging Voltage, Sealed:14.6V; Flooded:14.8V; User:9-17V (24Vsystem×2) |
| Boost Charging Voltage | Sealed:14.4V; Gel:14.2V; Flooded:14.6V; User:9-17V(24Vsystem×2) |
| Float Charging Voltage | Sealed/Gel/Flooded:13.8V; User:9-17V(24Vsystem×2) |
| Low Voltage Reconnect Voltage | LiFePO4(4s):12.8V; Li-NiCoMn(3s):10.5V; User:9-17V(24Vsystem×2) |
| Low Voltage Disconnect Voltage | LiFePO4(4s):11.1V; Li-NiCoMn(3s):9.3V; User:9-17V(24Vsystem×2) |
| Lithium | Boost Charging Voltage, LiFePO4(4s):14.5V; Li-NiCoMn(3s):12.5V; User:9-17V(24Vsystem×2) |
| Self-consumption | ≤15mA/12V; ≤22mA/24V |
| Communication | IR communication |
| Work temperature range | -40℃～+60℃ |
| Enclosure | IP68(1.5m,72h) |
| Dimension (L x W x H) | 124×89×30mm, 150×93.5×32.7mm, 153×105×52.1mm |
| Mounting hole size | Φ3.5mm |
| Mounting size (L x W) | 120×83mm, 120×94mm, 88×76mm |
| Power cable | PV/BAT:12AWG(4mm2) LOAD:16AWG(1.5mm2), PV/BAT:14AWG(2.5mm2) LOAD:18AWG(1.0mm2) |
| Net Weight | 0.52kg, 0.71kg, 1.18kg |
About this item

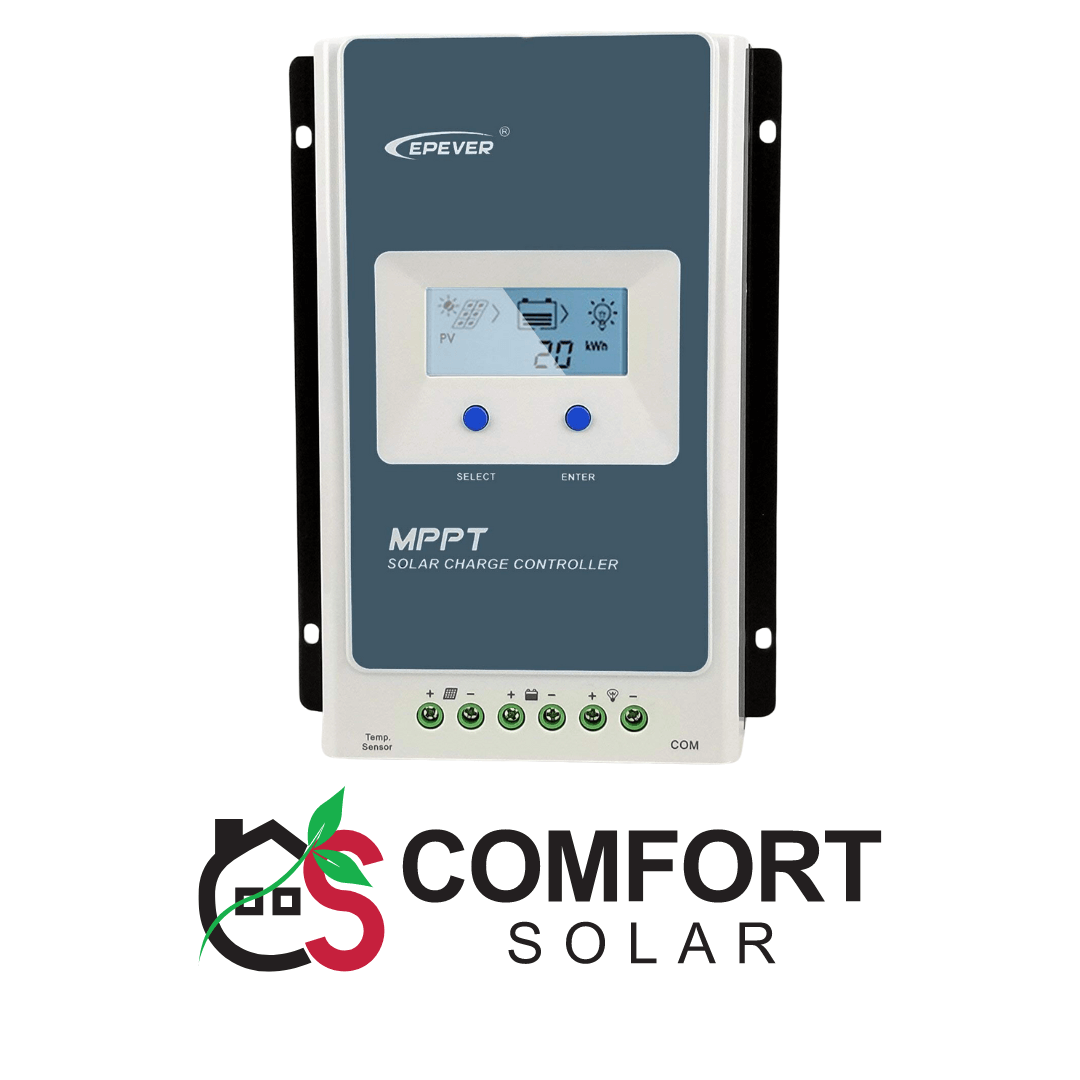

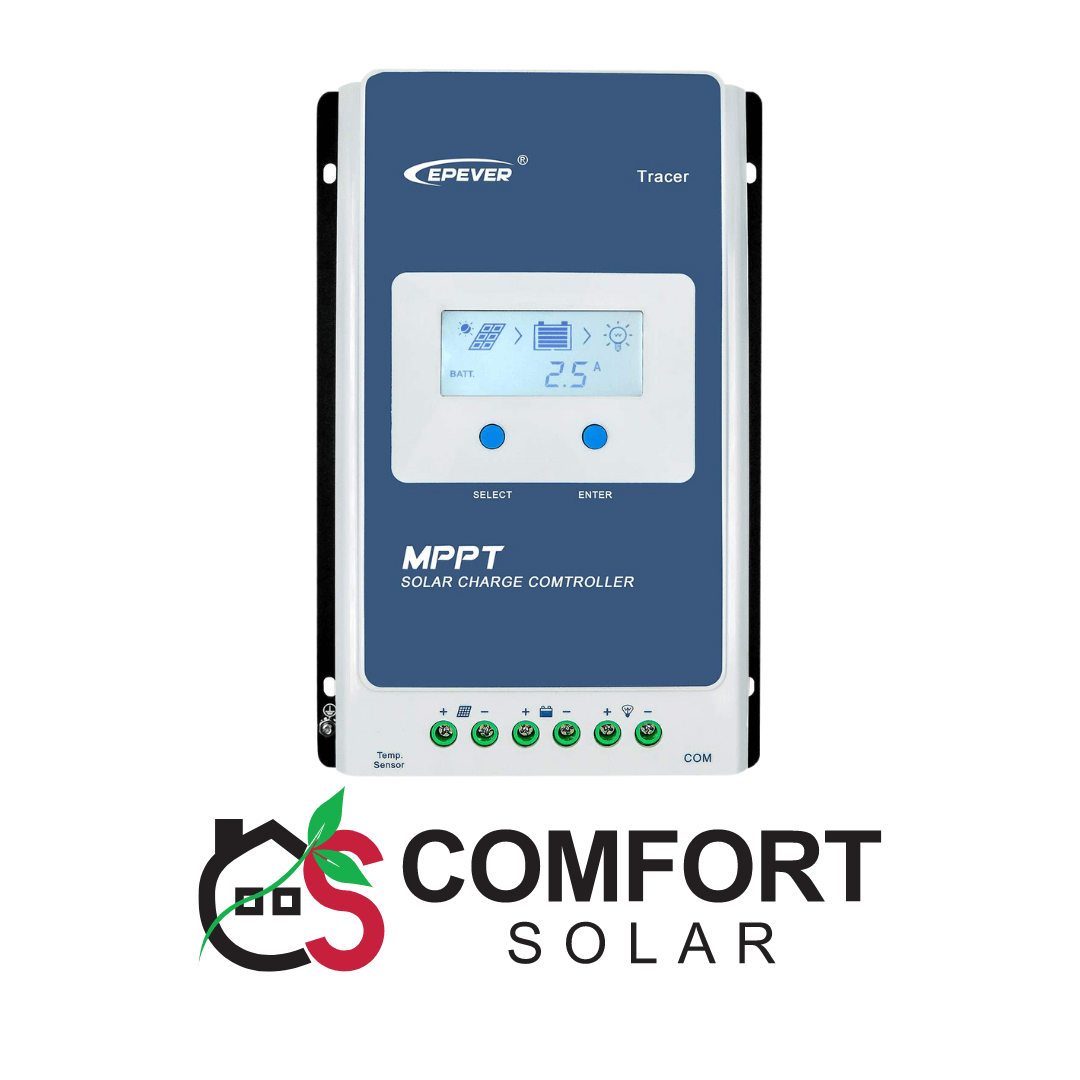

Tracer2210AN Solar Charge Controller
Highlights: The Tracer2210AN is a versatile solar charge controller capable of automatically identifying 12/24VDC system voltages. It features a rated charge/discharge current of 20A and supports a maximum PV input power of 260W for 12V systems and 520W for 24V systems. The controller also accommodates a maximum PV open circuit voltage of 100V and utilizes a common negative ground design.
Advanced MPPT Technology: The controller employs advanced MPPT (Maximum Power Point Tracking) technology with a tracking efficiency of no less than 99.5% and a maximum conversion efficiency of 99%. It is compatible with both lead-acid and lithium-ion batteries, offering flexibility in battery choice for your solar setup.

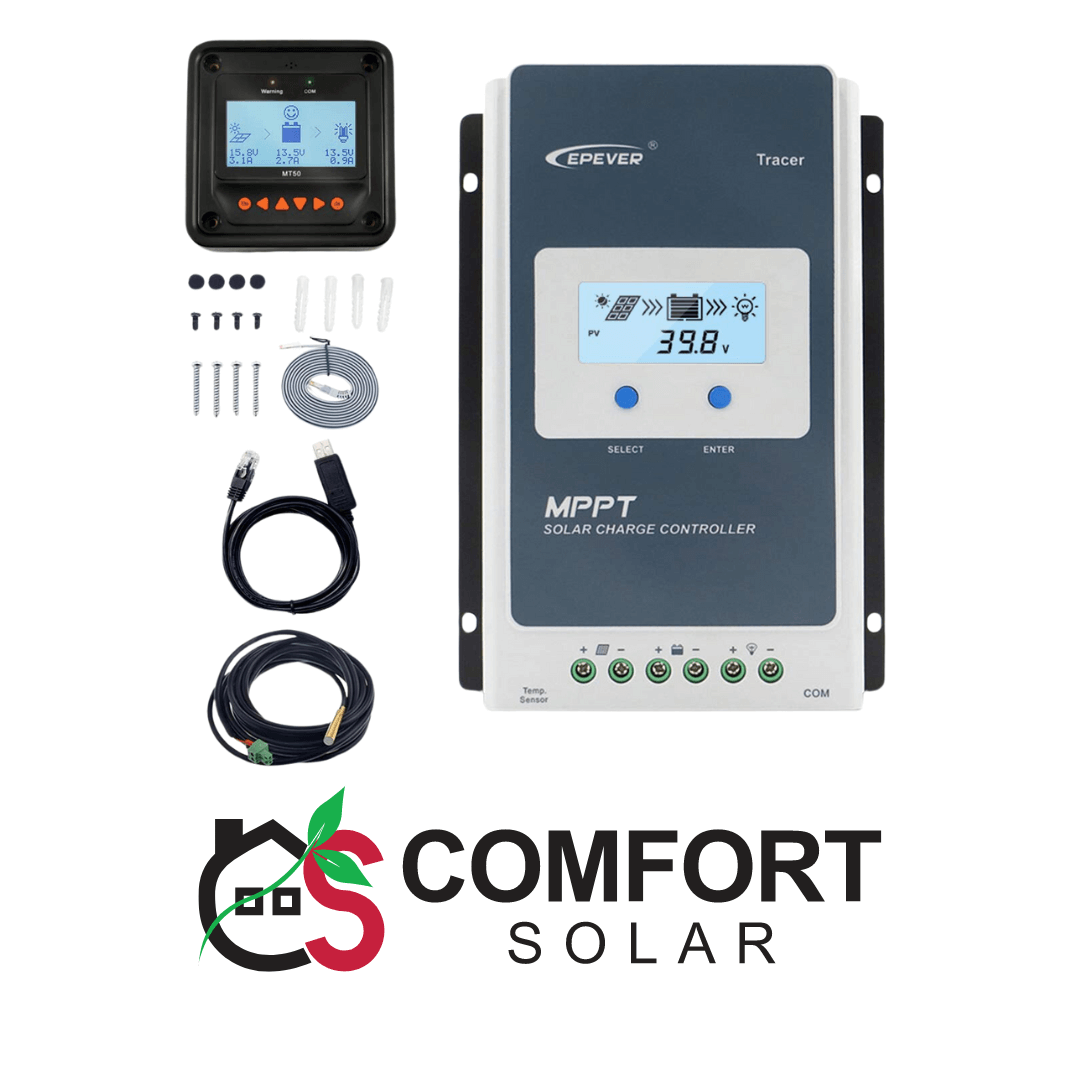

MT50 Remote Meter: The MT50 remote meter enables real-time data monitoring, remote load switching, and modification of device and charging control parameters. It facilitates easy browsing and modification of load control settings for enhanced system management.
RS485 Communication: With the RS485 cable, you can swiftly connect monitoring equipment such as a PC or MT50 to the controller. This allows real-time monitoring of data and adjustment of solar charging system parameters for optimal performance.
Temperature Sensor RTS: The included Temperature Sensor RTS acquires battery temperature data, enabling temperature compensation of control parameters. The sensor comes with a standard 3-meter cable for convenient installation.
Why Choose Comfort Solar?
Comfort Solar, an authorized supplier of quality solar products, provides robust solutions for your energy needs. Our Tracer2210AN solar charge controller offers high efficiency and reliability, ensuring maximum performance for your solar energy system.
Call to Action:
Visit comfortsolar.pk to discover more about the Tracer2210AN and other premium solar products. Contact us via WhatsApp at 03166225526 for inquiries or to discuss your solar system requirements. Experience superior solar energy management with Comfort Solar!
